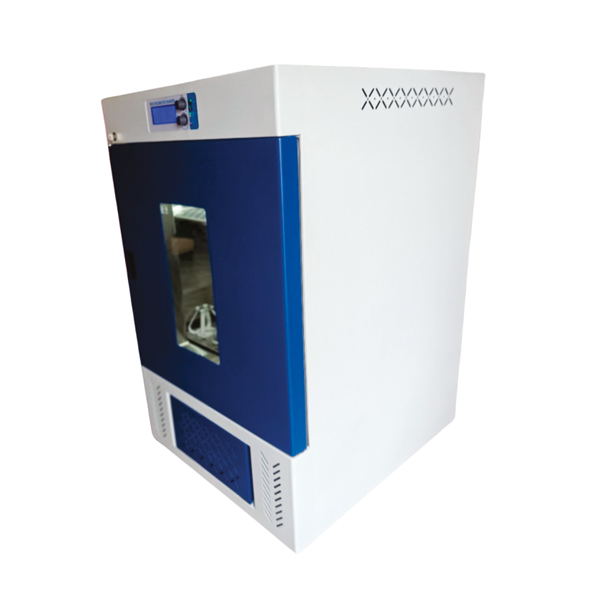

Vertical Shaker Incubator

Specification

It is widely used in germ culture, ferment, hybridization, and research of biochemical reaction, enzyme and cellular tissue and all those require high temperature and oscillation frequency.

Features

• Vertical double-layered construct, compact but capacious;
• Intelligent micro processing controller with Audio visual alarm;
• Large LCD screen displays the setting parameters and the measured parameters;
• The operating parameter locked by password to avoid misoperation;
• Timer up to 999 hours and 59 minutes;
• Brushless DC motor design, wide speed range, constant torque, constant rotation speed, no carbon
  brush, maintenance free;
• Adopts imported bearing, long service life and low noise;
• Over temperature acoustic alarm function, the power supply can be cut off automatically when
  temperature is out of control;
• Power-off recovery function, the equipment can restore working automatically according to the original
  setting program when the external power is recovered after a sudden cut off;
• The acceleration control circuit starts slowly and accelerates smoothly to ensure the safety of the sample;
• Electrostatic spray plastics housing, mirror stainless steel chamber, toughened glass observation
  window;
• Equipped with charging port, individual temperature limit switch, door switch and door lock.

Technical Parameters

• Volume [L]: 200
• Temp. Range [°C]: RT+5~60
• Temp. Resolution [°C]: 0.1
• Temp. Fluctuation at 37°C [°C]: ±0.5
• Temp. Uniformity at 37°C [°C]: ±1
• Rotation Rate [rpm]: 1~300
• Rotation Accuracy [rpm]: ±1
• Vibration Amplitude [mm]: 025
• Timer Range [h]: 0~999
• Number of Trays [pc]: 2
• Power Supply [V, Hz]: 220, 50/60
• Internal Dimensions W×D×H [mm]: 720×720×720
• Housing Dimensions W×D×H [mm]: 880×1000×1425
• Tray Size WxD [mm]: 600x600mm
• Standard Conation [pcxml]: 25×250/500
• Net Weight [kg]: 120
