Description

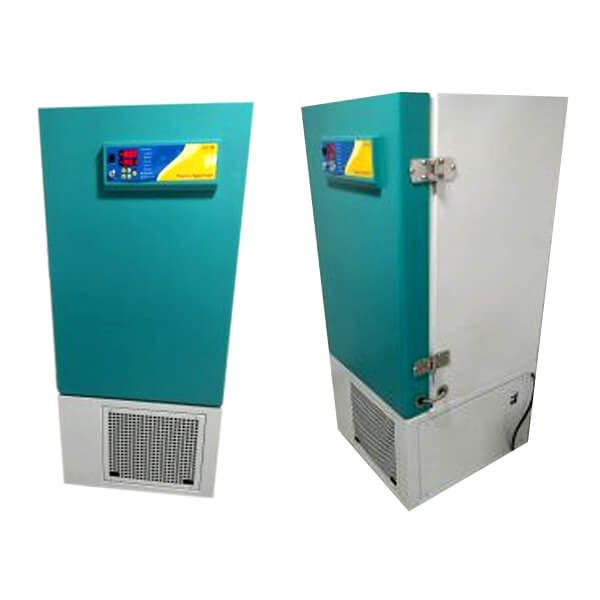

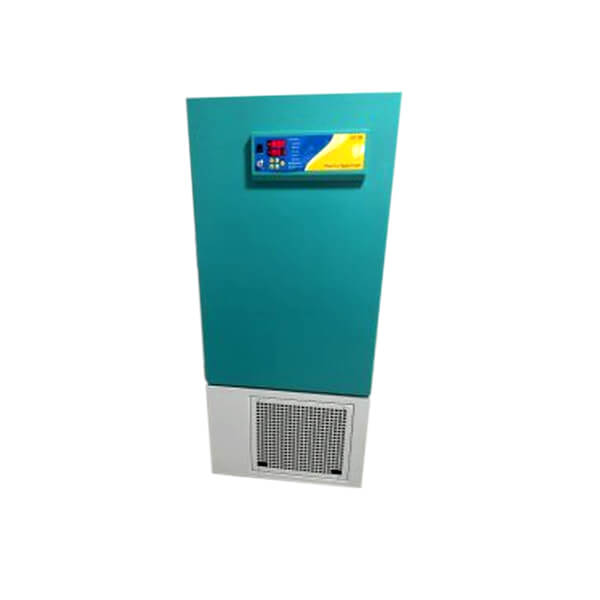

Ultra Low Temperature Freezer
Thermo Spectrum Instruments
- Deep Freezers are designed for storage of biological samples in biotech, life science, clinical research as well as medical & pharmaceutical specimens, serums, vaccines, blood components.
- Double walled construction, having Stainless Steel-304 grade Interior & Exterior CRCA Steel with Powder Coat finish.
- Inner made of Stainless Steel-304/316 grade and Exterior of Stainless Steel -304 grade in GMP Model.
- Cooling element is embedded from outer side of the working chamber.
- Units are highly insulated by PUF (Polyurethane Foam) between the walls with 100% vapor barrier.
- A key locking door having magnetic gasket seals door gaps perfectly.
- Full length inner plexin-glass to avoid the temperature loss.
- High Efficiency CFC Free Cooling system includes hermetically sealed Emerson Copland make compressor coupled utilizing an CFC Free eco-friendly refrigerant & with air cooled condensing unit fitted with Motor, Fan Blade, Electrical Accessories etc. Mounted on bottom of the unit on heavy base frame.
- Temperature controlled by Dual Display Microprocessor based PID Temp. Controller with & PT-100 sensor.
- Temperature Range: Upto-20° C & Upto -80° C.
- Temperature Accuracy: ± 2°C to 3° С.
- Temperature Uniformity: ± 2 C or better.
- Castor wheels for easy mobility.
- Operates on 230 Volts AC Single phase 50 Hz.
SAFETY FEATURES
A. Inbuilt Overload protection relay for compressor.
B. Compressor ON delay timer, to safe guard the compressor.
N.B. :-80° C and above ultra deep freezer models are also available with Cascade cooling system having CFC free compressor utilizing eco-friendly refrigerants with air cooled condenser,
Technical Specification
| Models | LTFV-01 | LTFV-02 | LTFV-03 | LTFV-04 | |||||
| Capacity | 100 Lit | 170 Lit | 270 Lit | 325 Lit | |||||
| Cooling System | Double Stage (Cascade System) | ||||||||
| Temperature | Range | Upto – 80° C | |||||||
| Sensor | PT-100 RTD sensor | ||||||||
| Display Resolution | 0.1°C | ||||||||
| Control Accuracy | ±3°C | ||||||||
| Compressor | Hermetic type | ||||||||
| Condenser Type | Fin & Tube type Air-Cooled Condenser | ||||||||
| Refrigerant | O – FRI END LY CFC-FREE refrigerant | ||||||||
| Controller & Display | Microprocessor based temperature controller cum indicator with LCD mounted on the door at eye level | ||||||||
| Material of Construction | Internal | Polished Stainless Steel 304 grade | |||||||
| External | CRCA sheet attractively powder coated | ||||||||
| Inner | Polished Stainless Steel 304 grade (inner side of main door) | ||||||||
| Insulation | High Density Polyurethane Foam (PUF) insulation 1 | ||||||||
| Inner Doors & No. of Trays | 4,3 | 5,4 | 5,4 | 5,4 | |||||
| Gasket System | Triple magnetic gasket system | ||||||||
| Alarm (Audio – Visual) | High and low temperature safety alarm Door ajar alarm will activate if the door is opened for more than a minute. Filter clean indicator light advises when to remove and wash filter. Powers fails Alarm. | ||||||||
| Inner Chamber
Dimensions (HxDxW)mm |
700 x 350 x 400 | 1100 x 420 x 420 | 100 x 500 x 500 | 1100x 600 x 600 | |||||
| Optional Accessories | Data logger | ||||||||
| Cryo gloves | |||||||||
| RS-485 communication | |||||||||
| Remote Alarm Contacts | |||||||||
| Power | 230V, 50 Hz, Single Phase | ||||||||
