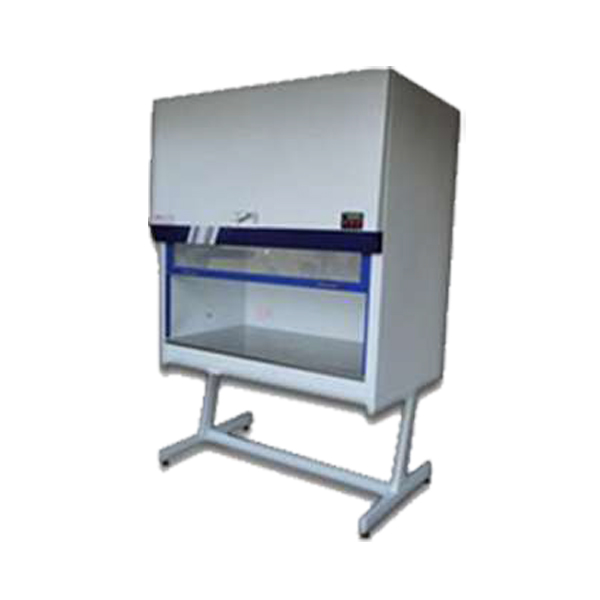

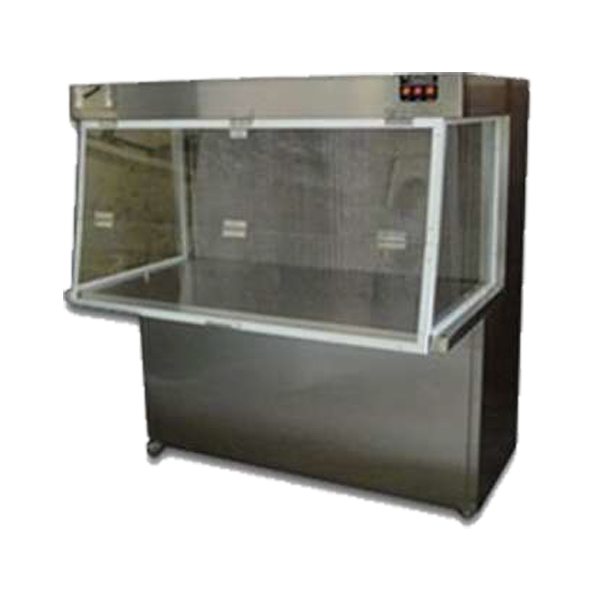

Vertical & Horizontal Laminar Flow

Thermo spectrum Horizontal laminar air flow cabinet is ideal for the applications in the field of scientific & industrial research, biology, microbiology, biotechnology, toxicology and tissue culture laboratories & hospitals, educational institutions, drugs and pharmaceutical industries, automotive and electronics, space applications, sterility testing, semiconductor manufacturers. .
Material of construction: .
All laminar flow cabinets are manufactured in the following materials depending upon the choice of the customer and application ..
a) Wooden with laminated finish sheet .
b) G.I with powder coated finish .
c) Fully stainless steel with satin finish (Gr-304 / Gr-316) .
Air flow & Filtration: Laminar flow principle involves double filtration of air. Atmospheric air is drawn through pre filter and is made to pass through highly effective HEPA (High efficiency particular air) filters having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all air borne particles of size 0.3 micron and larger. Double flows in the working are of the laminar flow at designed velocity of 90 ft/min +/- 20% .
HEPA filters made of micro clean glass fiber paper of imported origin with fine corrugated aluminium foil separators. Pressure drop will be 18mm WG. Pre -filters are manufactured by using synthetic non woven polyester fabric material with HDPE mesh reinforcement on both sides. Both the filters are protected by suitable grill arrangement.
