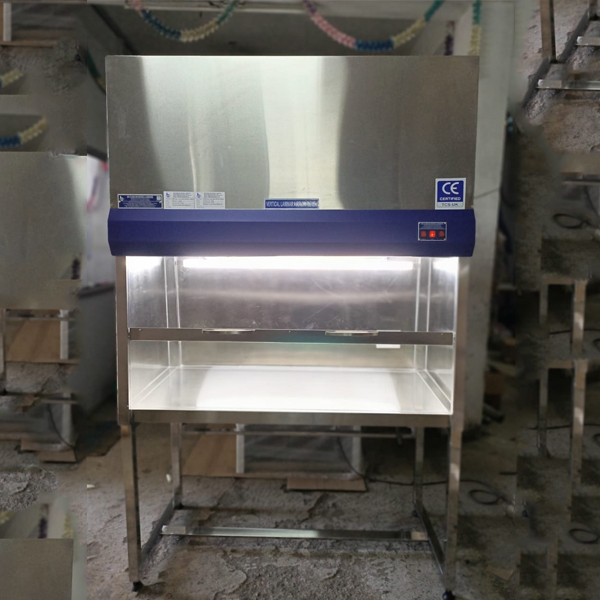

Luminar Air Flow Cabinet

Ideal for Microbiological Manipulations, Sterility Testing, research work & for general dry-processing work in semiconductor industry etc.

Construction: Standard  –  Full Cabinet made from CRCA Steel sheet – powder coat finished.

: GMP      –  Full Cabinet made from Stainless Steel (304 Grade).

Working Table Top  :  Made from Stainless Steel (304 Grade).

Side panels  :  Thick transparent Acrylic.

Motor Mounting  :  Unique spring suspension system with bellow which helps to reduce Vibrations and noise, produced during the process.

HEPA Filter  :  Mini Pleat – High Efficiency Particular Air Filter with Efficiency 99.97% down on 0.3 micron.

Pre Filter   :  Washable Filter having efficiency of 95% down to 10 micron.

Air Flow Velocity  :    90 FPM (0.45 m/s) 10 FPM (0.05 m/s) average velocity measured 6 in (153.4 mm) from the diffused screen.

Air Uniformity   :  ± 20% of average or better.

Air Circulation   :  Balanced blowers fitted with direct driven FHP Motor. (For Variable air flow speed in accordance with filter loading).

Static Pressure Indicator  :  Oil Filled Manometer.

Inner chamber Sterilization : Through UV Germicidal tube.

Inner chamber Illumination : Fluorescent tube light.

Noise Level:< 65 DB measured at 1 Mtr from filter face.

Gas Cock Provision.

Castor Wheels for easy mobility.
