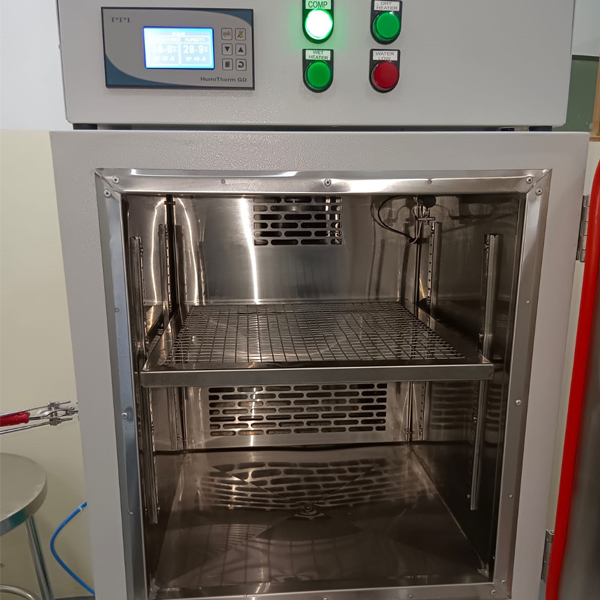

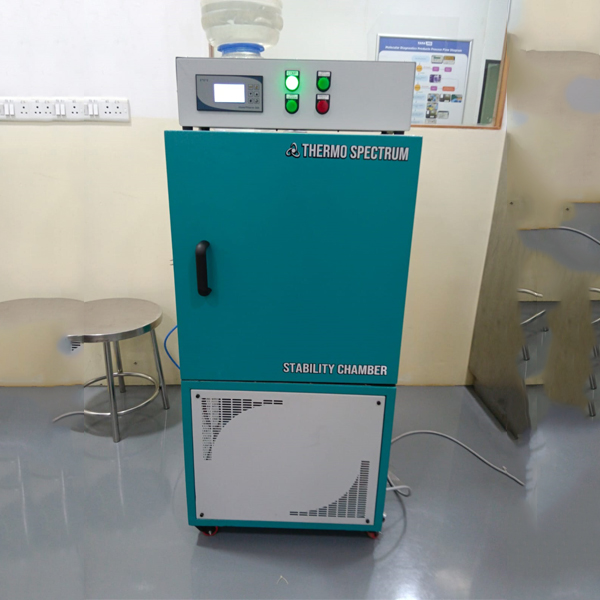

Humidity Chamber – Stability Chamber

• Designed & widely used in application & tests of Electronic/Electrical components, Plant and Animal growth studies, and Shelf life studies in Pharmaceutical & Packaging sector & Other Q/C Labs under controlled temperature and humidity conditions.
• Double walled having Inner Stainless Steel-304 grade chamber and Exterior with CRCA Steel – Powder coat finished.
• Inner made of Stainless Steel-304/316 grade and Exterior of Stainless Steel – 304 grade in GMP Model.
• Castor Wheel for easy manoeuvribility.
• Full view observation Acrylic/Glass door to observe sample inside the chamber.
• Illumination is provided through fluorescent tubes for clear visibility.
• Air Circulation ensures more stability of condition & even distribution inside the chamber.
• The temperature & humidity controlled by Microprocessor based PID Temperature & RH % Controller & PT-100 sensor for temperature & Humidity sensing.
• High efficiency CFC free cooling system includes hermetically sealed Emerson Copland make compressor coupled with air cooled condensing unit fitted with Motor, fan blade, electrical accessories etc. mounted on bottom of unit on heavy base frame.
• Humidification through steam injection system.
• Reservoir water tank having float valve provision.
• Adjustable & removable S.S. Rod shelves.
• Operates on 230 Volts AC Single phase 50 Hz.

SAFETY FEATURES:

A. Redundant high temperature safety system automatically cuts-off power to heaters if temperature exceeds 70 deg С.
Humidity Accuracy ± 3% RH
B. A boiler tank consisting of Water Heater having auto cut-off facility for low water level.

C. Inbuilt overload protection relay for compressor.
D. Compressor ON delay timer, to safe guard the compressor.

OPTIONAL ACCESSORIES:

A. RS 485 for PC Communication with 21 CFR Compliance Software

B. Programmable logic controller (PLC) with HMI with color touch screen.
