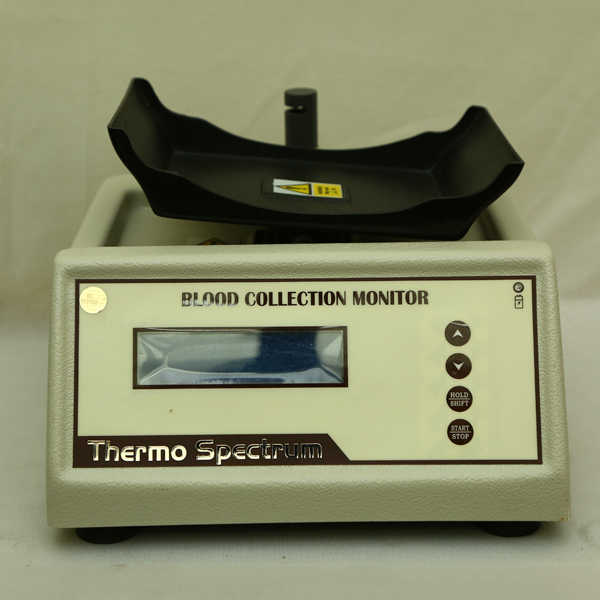

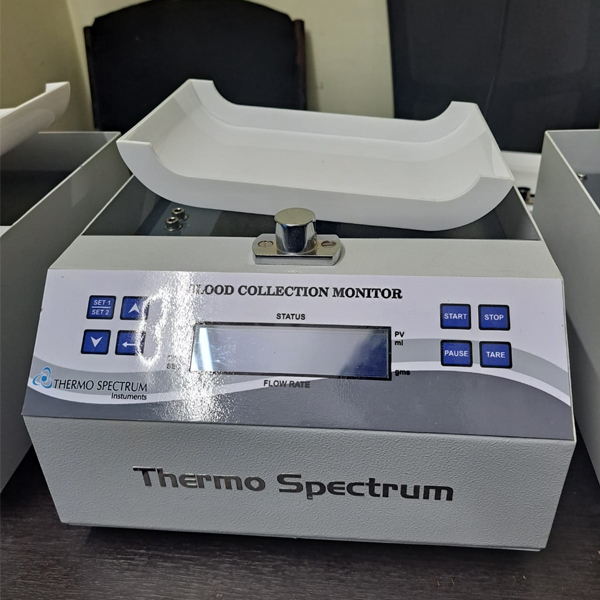

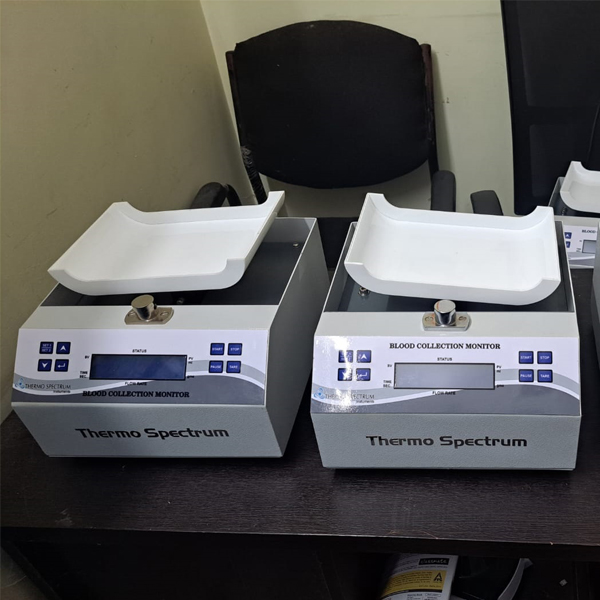

Blood Collection Monitor

Thermo Blood Collection Monitor is provided with a microprocessor based controller programmed for precise collection of blood from donors. This sleek and light weight instrument provides efficient mixing of the blood collected with the anticoagulant in the blood bag.

The monitor has wonderful features like display of net volume of blood collected, monitoring of blood
flow rate, audio visual alarms and automatic clamping of tube incase of improper blood flow rate. When the collection reaches the pre set volume, the clamp automatically closes the tube. The total weight of blood collected and collection time is also shown at the end of collection process..

The imported micro miniature motor rocks the tray at a nominal speed of 12-20 cycle/min with ±12.5 degrees.

The target volume can be set from a range of 0-600ml. It is also provided with audio visual alarms
for high flow rate, low flow rate, long collection time. The battery back-up provided in our collection monitor provides a backup for 8-10 hours.

Features

• Aesthetically designed lightweight and easily portable.
• Battery backup 24 hour.
• Volume can be selected up to 999 ml /gm. Preset button for collection of 350/450ml
• 16×2 jumbo LCD display of set volume & weight collected volume, time taken for collection, low or no flow
• Memory of previous set volume for comfort of repeated collection.
• Auto tarring facility with tarring range of 0-999 gm, tarring of bag weight before starting the collection.
• Easily removable tray
• Automatic clamping at termination of preset volume collection. Automatic release of bag when lifted.
• Continuous display of current status of volume / weight & collection time on LCD
• Equipped with counter balancing before starting the procedure
• Smooth gentle mixing with continuous agitation 12-20 cycle/min.
• Provided with audio alarm indication at the end of completion of collection.
• Calibrated to measure volume / weight with accuracy ±1 ml. / gm.
• Audio visual alarm when blood flow is more than 180ml (high blood pressure) and less than 20ml (low blood pressure) within 60 seconds continuously display the flow rate.
• A Pause key and stop key is provided for emergency stopping of collection and the same can be resumed
