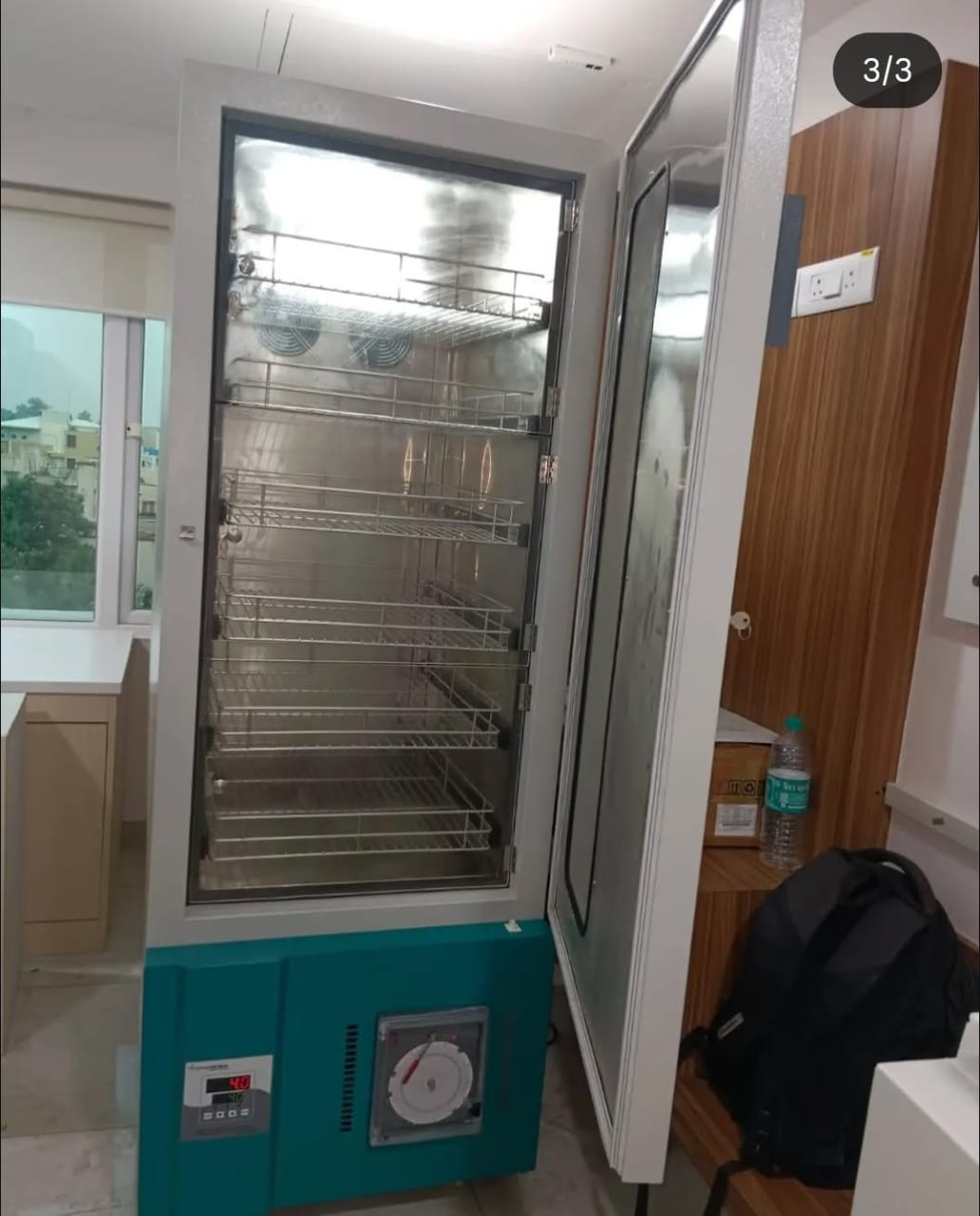

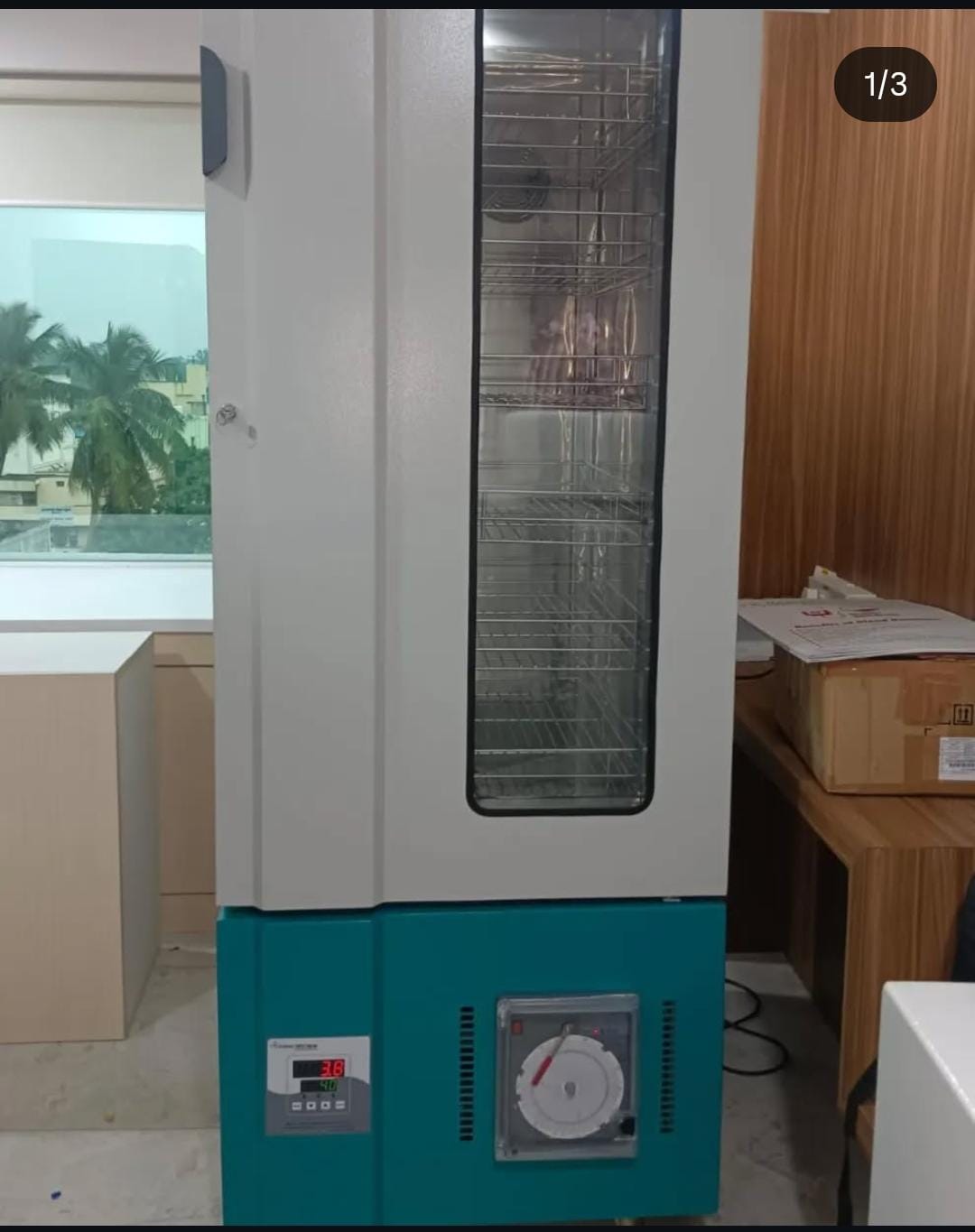

Blood Bag Refrigerator

Features & Technical Specifications

Microprocessor based Controller for precise control of temperature
In built audio visual alarm for temperature deviation, low and high alarm, door open alarm and power failure alarm
Temperature range : 2⁰C to 6⁰C
Temperature accuracy : ±1⁰C
Provided with inner circulation fans for achieving uniformity of temperature
Smooth moving pull out trays for easy loading of blood bags and samples.
CFC free refrigeration system
Time delay for Compressor
Insulated main door with magnetic gasket, handle and lock for safety and temperature stability
Main door is provided with viewing window made of toughened glass
Illumination is provided by inbuilt LED light (Door operated)
Equipment provided with weekly circular chart recorder
Fin & tube type condenser
Inner chamber made of stainless steel SS304 grade and outer made of CRCA sheet attractively powder coated
Entire unit is mounted on smooth moving castor wheels for easy movement

Other optional features

Fully stainless steel (Both inner and outer in SS 304.GMP model),
Battery backup for controller
Data logger with USB port for downloading data to PEN drive and GSM based SMS alarm and auto e-mail facility

Description

Standard Models

Model	TS-BBR-100	TS-BBR-200	TS-BBR-300	TS-BBR-400
Temperature Range	2⁰C to 6⁰C	2⁰C to 6⁰C	2⁰C to 6⁰C	2⁰C to 6⁰C
Volume	100 Ltrs	200 Ltrs	300 Ltrs	400 Ltrs
No.of Bags	60 Bags	120 Bags	180 Bags	240 Bags
Inner Dimension (L x D x H) in mm	450 x 450 x 500	450 x 500 x 900	550 x 500 x 11100	550 x 560 x 1300
External Dimension (L x D x H) in mm	570 x 650 x 920	620 x 620 x 1320	670 x 700 x 1550	720 x 780 x 1670
No.of trays/baskets	3 Nos.	4 Nos.	5 Nos.	6 Nos.
MOC – inner & trays	SS304	SS304	SS304	SS304
MOC – External	CRCA sheet with powder coating	CRCA sheet with powder coating	CRCA sheet with powder coating	CRCA sheet with powder coating
